iinnoSens 810T Suspended Solids Sensor

 Measure of turbidity in wastewater
 Measure of turbidity in primary, industrial, recirculating water

 Measure of Sludge and Staff concentration,industrial water

Features and benefits
 Reliable concentration measurement using optical measuring process
 Infrared light pulsing beams scattering method
 Black rigid PVC and AISI 316 sensor body
 No mechanically moving parts
 Measured value pre-processing in sensor resulting in low signal transmission sensitivity
 Immediate installation and easy maintenance

Turbidity measurement with the 90° scattered light method

By turbidity we mean the scattered component of a light beam which is diverted away from its original course by optically denser particles in the medium e.g. solid matter particles.Measurements are made using the standardised 90° scattered light method in accordance with ISO 7027 / EN 27027. The measuring method is based on the Tyndall effect.The turbidity of the medium is determined from the amount of scattered light. The transmitted infra-red light beam is scattered by the particles in the medium.The scattered beams are measured by scattered light receivers which are fixed at an angle of 90 to the transmitted light. The measured scattered light signals are converted to frequency signals.

The frequency signals are assigned to corresponding turbidity units and solid matter concentrations,and appear in the display.


Materials: Black PVC and AISI 316 Body, Special Glass Optics

Thread: 1" GAS

Measuring range:  0-4.0, 0-40.0, 0-400.0, 0-1000.0NTU

                         0-10.0, 0-100.0, 0-1000.0, 0-2000.0mg/l

Measuring method: 90° Scattered light

Accuracy:  ± 2% of f.s.

Repeatability:  98 %

Working temperature: 0~60 °C

Max Working pressure: 4 bar

Mechanical Protection: IP68

Cable: 10m

Order No.             Descriptions
35-0810-02 innoSens 810T turbidity/SS sensor, 0-1000.0NTU, 0-2000.0mg/l

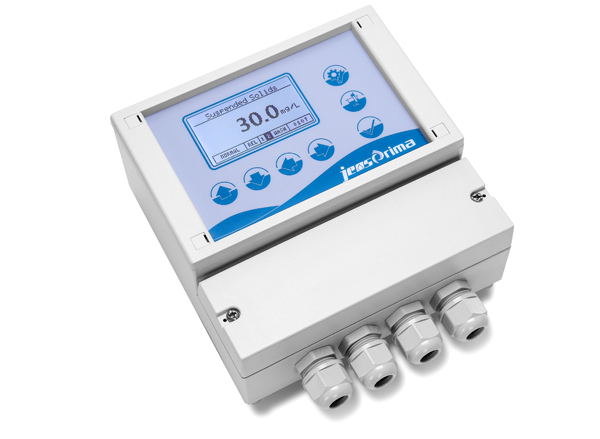

33-6800-30 innoCon 6800T turbidity controller, 90 - 260VAC (24VDC optional)
